Fig 40. Circular cylinder at R=9.6

Table of Content

“Here, in contrast to figure 24, the flow has clearly separated to form a pair of recirculating eddies. The cylinder is moving through a tank of water containing aluminum powder, and is illuminated by a sheet of light below the tree surface. Extrapolation of such experiments to unbounded flow suggests separation at R=4 or 5, whereas most numerical computations give R=5 to 7.” Photograph by Sadathoshi Taneda

Flow separation>

Flow separation #

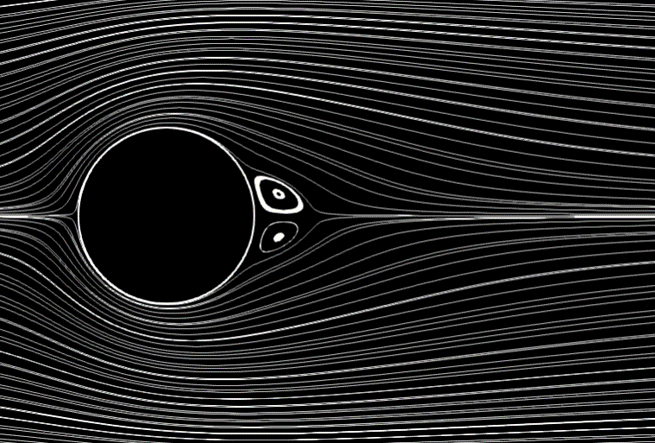

This post is part of a series on flow separation, studied for the case of flow past a circular cylinder at different Reynolds numbers. The current figure is the first figure of this series displaying flow seperation, although the onset of separation should occur for a Reynolds number around 5.

The main theory and simulation and visualization set-up are discussed in the web post from Figure 42. The full series is:

Figure 24: Circular cylinder at R=1.54.
Figure 40: Circular cylinder at R=9.6.
Figure 41: Circular cylinder at R=13.1.
Figure 42: Circular cylinder at R=26.
Figure 45: Circular cylinder at R=28.4.
Figure 46: Circular cylinder at R=41.
Figure 96: Kármán vortex street behind a circular cylinder at R=105.
Figure 94: Kármán vortex street behind a circular cylinder at R=140.

An overview of these posts can be viewed here:
